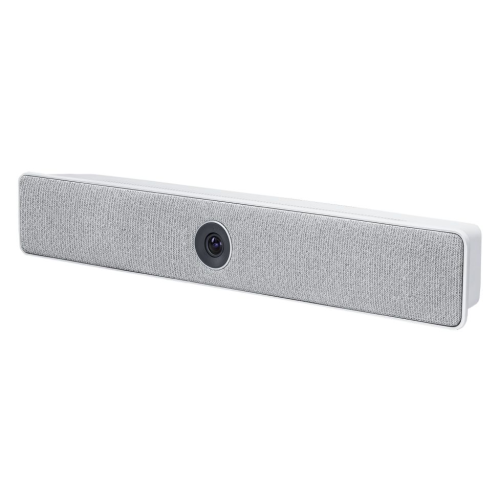

Cisco Webex Room Kit Mini (CS-KIT-MINI-K9) поєднує кодек, камеру, мікрофони та динаміки в одному пристрої, який інтегрується з дисплеєм 4K, щоб зробити всі ваші переговорні кімнати та простори більш інтелектуальними та зручними. Room Kit Mini забезпечує найкращі можливості спільної роботи. Room Kit Mini відрізняється багатою функціональністю та зручністю.

Room Kit Mini ідеально підходить для групових приміщень за участю від трьох до п'яти осіб через його широке поле огляду 120 градусів, що дозволяє бачити всіх, хто знаходиться в приміщенні. Він також пропонує гнучкість для підключення до програмного забезпечення відеоконференцзв'язку на ноутбуці через USB.

Features and benefits

Feature	Benefit
Smart meetings	● Brings intelligent views to smaller rooms with a discreet, integrated camera and powerful zoom capabilities ● Best overview: Automatically detects meeting participants and provides ideal framing ● Great audio experience with integrated microphones and speakers (picks up audio up to 4 meters from the device) ● Automatic noise suppression reduces disruptive sounds coming from the meeting room (e.g., typing, paper rustling) ● Simplified meeting-join experience with One Button To Push (OBTP) for scheduled devices in a Cisco Webex meeting, whether registered on-premises or to the Cisco Webex Cloud. ● Automatic wake-up: System “wakes up” when someone walks into the room, and recognizes them through their mobile device ● Easily controlled by the Cisco Webex Room Navigator control unit or with a Cisco Webex ™ app ● End-to-end security
Smart presentations	● View white board content and annotations shared from a Cisco Webex Board, Cisco Webex Desk Pro, or Cisco Webex app; participate in whiteboarding sessions through the Cisco Webex app * ● 4K content sharing (local 30 fps; remote 5 fps) ● Wired or wireless content sharing (only two wires required – power and HDMI)
Smart rooms	● Metrics: Counts people in the room, enabling analytics for better resource planning ● Automatic screen/display integration through HDMI CEC ● Supports Wi-Fi ● In-room control: Control peripherals such as lights and blinds through the Cisco Webex Room Navigator
Built for cloud and premises	● Flexibility to register on-premises or to the cloud through Cisco Webex ● Hardware is optimized to run on a cloud platform for great experiences in shared rooms and spaces with easy access to hosted conferences

Product specifications

Specification	Description
Software compatibility	● Cisco Collaboration Endpoint Software Version 9.14.5 or later, and Cisco Webex RoomOS
Optional hardware components	● HDMI presentation cable 8 m / 26.2 ft. ● 4 m / 13 ft USB cable for USB pass-through feature ● Screen Mount Kit
Bandwidth	● Up to 6 Mbps point to point
Minimum bandwidth for resolution / frame rate	H.264: ● 720p30 from 768 kbps ● 720p60 from 1152 kbps ● 1080p30 from 1472 kbps ● 1080p60 from 2560 kbps
Firewall traversal	● Cisco Expressway ™ technology ● H.460.18, H.460.19 firewall traversal
Video standards	● H.264
Video inputs	● One HDMI output supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60 ● Consumer Electronics Control (CEC) 2.0
Video outputs	● 1 HDMI output supports formats up to 3840 x 2160p60 (4Kp60) ● Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p) ● Consumer Electronics Control (CEC) 2.0
Audio standards	● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Audio features	● High-quality 20 kHz audio ● Automatic Gain Control (AGC) ● Automatic noise reduction ● Active lip synchronization
Audio inputs	● One audio in from HDMI ● Internal microphones
Speakers (integrated)	● High-quality speakers: full range speaker plus dual woofers in balanced configuration ● Frequency response 100 Hz to 20 kHz ● Amplifier power: 24W ● Max output level SPL 84 dB
MultiSite	● H.239 (H.323) dual stream ● Binary Floor Control Protocol (BFCP) (SIP) dual stream ● Supports resolutions up to 3840 x 2160p5
Dual stream	● One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60 ● Consumer Electronics Control (CEC) 2.0
Wireless sharing	● Cisco Webex app (up to 3840 x 2160p5) ● Cisco Intelligent Proximity client (up to 1920 x 1080p5)
Multipoint support	● 4-way embedded SIP/H.323 conferencing capability with MultiSite option
MultiSite features (embedded multipoint) (optional upgrade)	● Adaptive SIP/H.323 MultiSite: ◦ 3-way resolution up to 1080p30 + content up to 1080p15 ◦ 4-way resolution up to 720p30 + content up to 1080p15 ● Full individual audio and video transcoding ● H.323/SIP/VoIP in the same conference ● Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5 ● Best impression (automatic continuous presence layouts) ● Encryption and dual stream from any site
Protocols	● H.323 ● SIP ● Cisco Webex
Embedded encryption	● H.323 and SIP point to point ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) ● Automatic key generation and exchange
IP network features	● DNS lookup for service configuration ● Differentiated services (Quality of Service [QoS]) ● IP-adaptive bandwidth management (including flow control) ● Automatic gatekeeper discovery ● Dynamic playout and lip-sync buffering ● H.245 Dual-Tone Multifrequency (DTMF) tones in H.323 ● RFC 4733 DTMF tones in SIP ● Date and time support using Network Time Protocol (NTP) ● Media adaptation and resilience ● Uniform Resource Identifier (URI) dialing ● Dynamic Host Configuration Protocol (DHCP) ● 802.1X network authentication ● 802.1Q Virtual LAN ● 802.1p (QoS and Class of Service [CoS])
Call control	● Cisco Unified Communications Manager (Unified CM) ◦ Native registration with Unified CM ◦ Requires Unified CM Version 9.1(2) or later with device pack Room Kit Mini ● Cisco Expressway ◦ Native registration with Expressway ● Cisco Webex Service ● Third-party H.323 gatekeepers and standards-based SIP proxies
IPv6 network support	● Single call stack support for both H.323 and SIP ● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ ● Support for both static and automatic IP configuration (stateless address auto configuration)
Security features	● Management using HTTPS and SSH ● IP administration password ● Menu administration password ● Disable IP services ● Network settings protection ● Privacy cover
Network interfaces	● One Ethernet (RJ-45) 10/100/1000 for LAN ● One Ethernet (RJ-45) for Cisco Touch 10 direct pairing ● Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 MIMO Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz – 5875 MHz. Using a Wifi connection is a flexible option, however an Ethernet connection is always preferred for high performance.
USB pass-through	● Ability to provide video, microphone, and speakers over one USB cable to a connected computer ● 720p video resolution
Other interfaces	● 1 USB 2.0 port type A ● 1 USB 2.0 port type C ● 1 mUSB port ● Factory reset pinhole
Power	● 100 to 240 VAC, 50/60 Hz, 12V DC input ● Average 20W, peak 70W ● Must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019
Operating temperature and humidity	● 0°C to 35°C (32°F to 104°F) ambient temperature ● 10% to 90% Relative Humidity (RH)
Storage and transport temperature	● -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)
Dimensions	● Width: 19.7 in. (50.0 cm) ● Height: 3.2 in. (8.1 cm) ● Depth: 3 in. (7.7 cm) ● Weight: 4 lb. (1.5 kg) Packaging size ● Width: 23.8 in. (60.5 cm) ● Height: 12.8 in. (32.6 cm) ● Depth: 8.5 in. (21.6 cm) ● Weight: 7 lb. (3.2 kg)
Camera overview	● 4K UltraHD camera ● Supports up to 60 fps (max 30 fps with best overview enabled) ● 8 MP image sensor ● 1/1.4 CMOS ● 5x zoom ● f/1.4 aperture ● 120° horizontal field of view ● Auto framing (face detect) ● Auto brightness, and white balance ● Focus distance 1 m to infinity
